Mastering the Silver Reed SK840

Electronics Set up for DAK

Learn About the Machine · Lesson 9 of 12

This machines uses external devices for automatic patterning. (Unlike Brother/Knit-King machines with built-in electronics)

This course focuses on how to use DesignaKnit to talk to the machine and choose the right needles for stitch patterns.

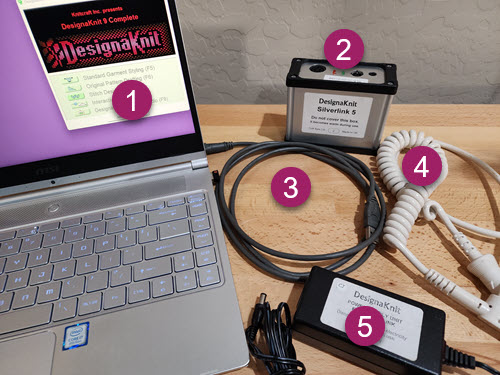

REQUIRED:

1
PC and DesignaKnit

2
SilverLink 4 or 5 box

3
USB cable (from PC to SilverLink Box)

4
Curl Cord (from SilverLink Box to Carriage)

5
Power cord for SilverLink Box

NOTE: The N-1 Cam (Needle 1) is NOT used with DesignaKnit

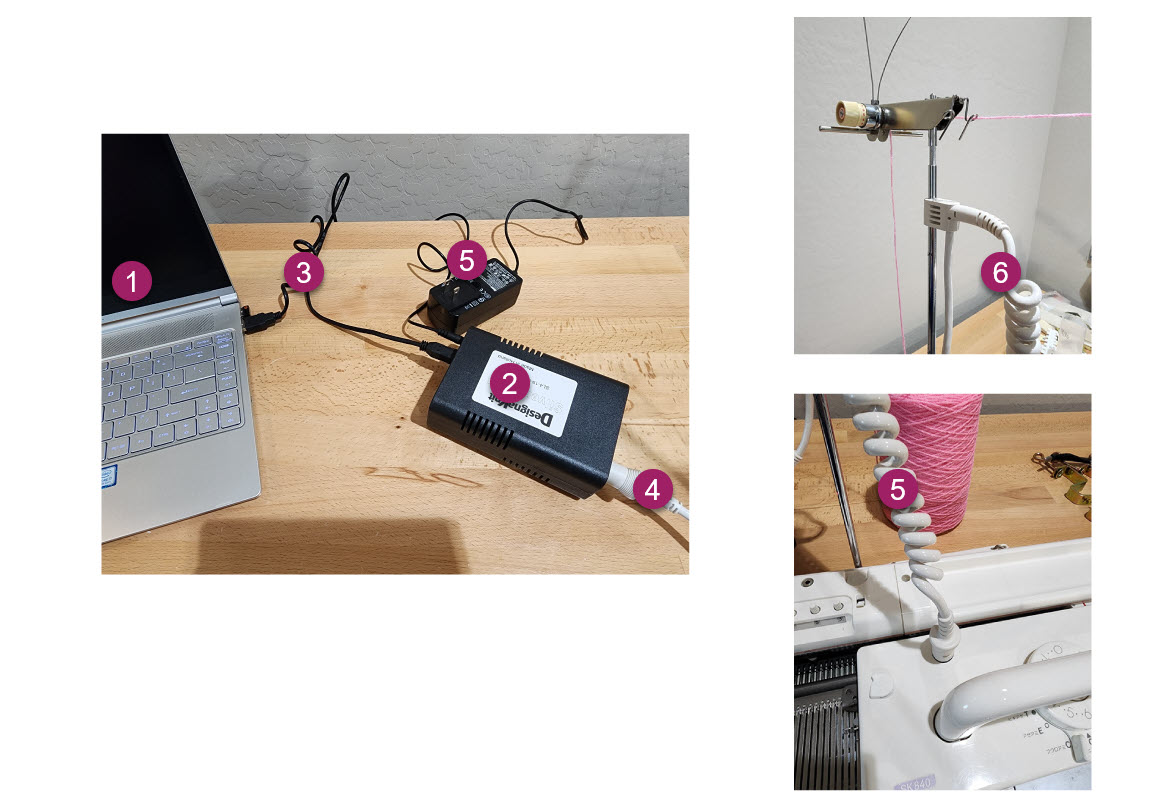

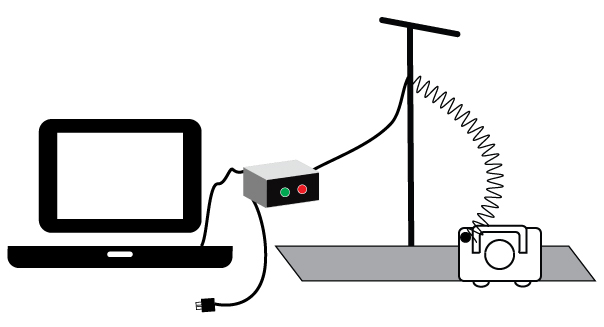

Connect the PC
1
to the SilverLink Box
2
with the USB Cable
3


Connect power to the SilverLink Box with the power cord
5


Position the Curl Cord on the tension mast (cable toward you)
6


Connect the Curl Cord to the carriage
5
